VALKIT Fire-Ball® 300 Series 15:1 Undercoating 400 lb. (181 kg) Pump - Stationary Package
VALKIT Fire-Ball® 300 Series 15:1 Undercoating 400 lb. (181 kg) Pump - Stationary Package
Couldn't load pickup availability
VALKIT Fire-Ball® 300 Series 15:1 Undercoating 400 lb. (181 kg) Pump - Stationary Package
As the mainstay pump in the industry for decades, the reputation of Fire-Ball is unrivaled. Built to withstand the test of time with fewer moving parts, our flagship pump is built to extend uptime so customers can be more productive. The durable pumps are renowned for their durability, with pumps built decades ago still operating efficiently.
Install the Fire-Ball 300 15:1 in high pressure, medium volume undercoating and rustproofing applications such as automotive dealerships, fast lube centers, and service shops.
- Reliable Flow - A 3 inch (76.2 mm) differential air motor and the double-acting pump design provides reliable fluid flow and accurate dispense.
- Durable - Thick cast aluminum air motor housing offers unmatched durability.
- Fewer Repairs - Fewer moving parts in the air motor assembly means less downtime and low repair cost.
- Extended Seal Life - In-line pump design aligns the air motor piston and fluid piston rods to maximize seal life.
- Reduce Downtime - Displacement rods have minimal wear due to a proprietary Graco manufacturing process.
- Superior Sealing - Non-metallic poppet valves offer positive sealing performance, even with contaminated "dirty" air environments for long life without repair.
- Reduced Icing - Large air porting design provides efficient use of compressed air supply for continuous pump operation and reduced icing.
- Corrosion-Resistant - Corrosion-resistant design utilizes liquid salt nitriding, nickel plating, stainless steel, aluminum and chrome on key components for longer life.

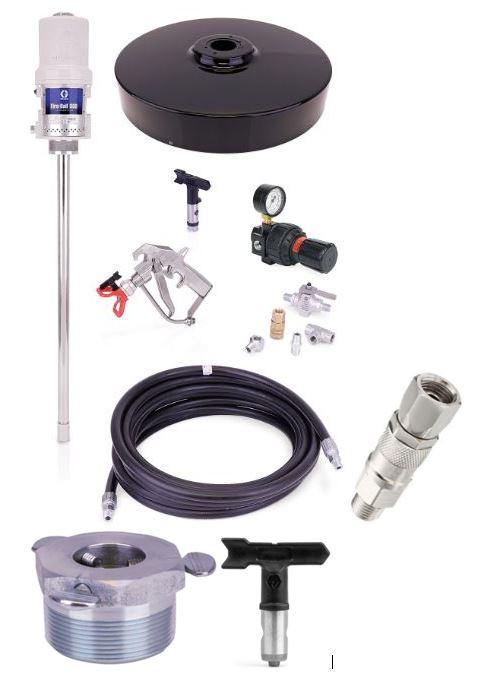

What’s included:
- 222082 Dispense Kit for Undercoating and Rustproofing Pump Packages for 55g Drum – 25 ft (7.6 m) Hose
- 206700 Fire-Ball 300 Series 15:1 400lb (180 kg) Grease Pump
- 200326 Drum Cover
- 286319 RAC 5 3:19 tip
- 239663 Straight Swivel
- 239966 Thumb Screw Bung Adapter
UPC Product: 00633955279261
Family Code: FAMFIR
Unit of Measure: EA
Height: 54 IN | 137.16 CM
Length: 26.4 IN | 67.056 CM
Width: 15.6 IN | 39.624 CM
Volume: 12.87 FT3 | 0.364 M3
Chargeable Weight: 139.973 LBS
Technical Specifications
|
APPLICATION |
Industrial |
|
COMPATIBLE MATERIAL |
Oil, Rustproofing, Undercoating |
|
FLUID OUTLET SIZE (CM) |
0.635 |
|
FLUID OUTLET SIZE (IN) |
1/4 |
|
FLUID OUTLET SIZE (MM) |
6.35 |
|
FLUID OUTLET THREAD GENDER |
Female |
|
FLUID OUTLET THREAD TYPE |
NPT |
|
INCLUDES |
UCoat Installation Kit |
|
MAXIMUM FLOW RATE (GPM) |
0.7 |
|
MAXIMUM WORKING PRESSURE (BAR) |
186 |
|
MAXIMUM WORKING PRESSURE (KPA) |
18600 |
|
MAXIMUM WORKING PRESSURE (PSI) |
2700 |
|
MOTOR TYPE |
Pneumatic |
|
SERIES |
300 |
|
PUMP RATIO |
15:1 |
|
AIR INLET SIZE (IN) |
0.375 |
|
AIR INLET THREAD GENDER |
Female |
|
AIR INLET THREAD TYPE |
NPT |
|
WETTED MATERIAL |
Carbon Steel, Brass, Copper, Aluminum, PTFE, Nitrile Rubber, Leather |
|
MAXIMUM FLUID WORKING PRESSURE (PSI) |
2700 |
|
PUMP WEIGHT (LB) |
22 |
|
TYPE |
Piston Pump Package |
|
POWER TYPE |
Pneumatic |
|
MAXIMUM WORKING PRESSURE (MPA) |
18.6 |
|
MAXIMUM AIR WORKING PRESSURE |
180 |
|
MODEL |
Fire-Ball |
T Fire-Ball® 300 Series 15:1 Undercoating 400 lb. (181 kg) Pump - Stationary Package
